Functional Textiles

Waterproof

Breathable.
Uncompromised.

NASK nanofiber membranes transform ordinary fabrics into multi-functional textiles — blocking liquid water under pressure while letting perspiration escape freely, with antibacterial, thermal, and anti-odor properties built into the fiber itself.
EXPLORE THE MATRIX

Core Features

NASK nanofiber technology transforms ordinary fabrics into high‑performance functional textiles.
By incorporating advanced functional additives into the nanofiber structure, we achieve:

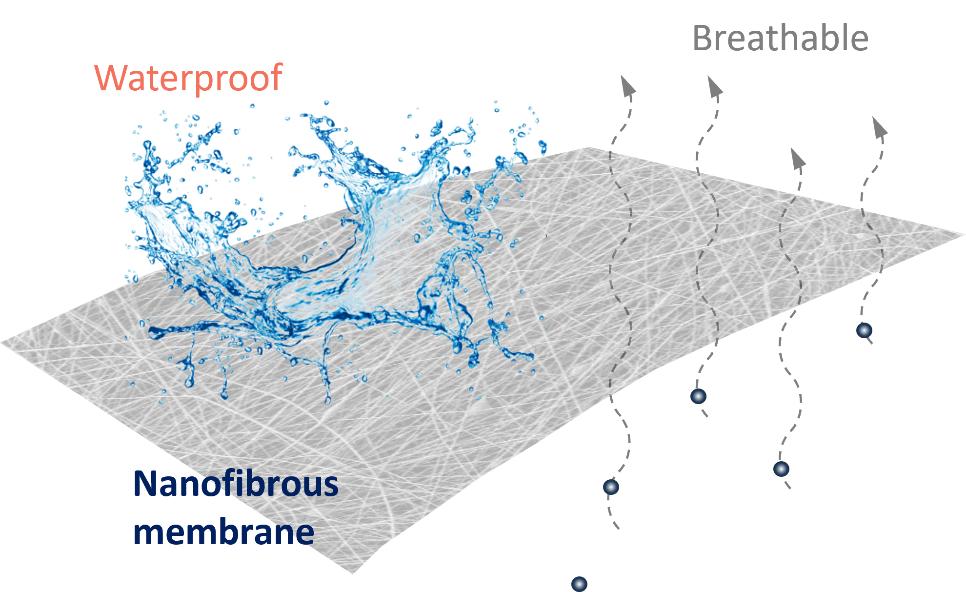

Enhance the water proof function on the textile without compromise on breathability

The nanofiber offer a high density layer of nanofiber, which capable to block the water under pressure. And due to it high porosity, only water vapor can pass through and the layer will effectively block the water droplet

Anti-Bacterial Functionality

We functionalize nanofiber with our cutting-edge formulation, making nanofiber attract bacterial and inhibit growth. The high surface to volume ratio nanofiber maximizes contact with bacteria, achieving high efficiency of antibacterial function

Thermal regulation

Integrated phase-change materials (PCMs) in our nanofibers enable dynamic temperature control. These materials absorb, store, and release thermal energy, buffering the wearer against temperature fluctuations for enhanced comfort.

Odor control

Inhibit bacteria that cause odors, and hence keep products smelling fresher for longer

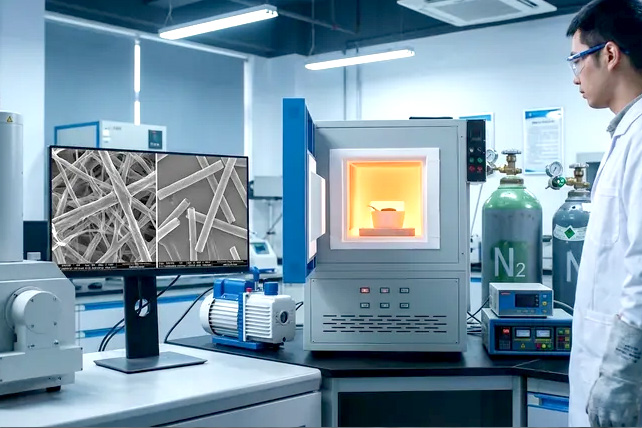

Enhance durability

Extend the life of textiles by reducing the need for frequent washing and preventing microbial degradation

Conventional Technologies to Manufacture Functional Fabrics

Microporous Coatings or Membranes

  • Made of expanded polytetrafluoroethylene (ePTFE) or polyurethane (PU)
  • Inhibit water penetration using surface tension
  • Allow penetration of water vapor due to the presence of micropores
  • Top breathability in the current market
  • High manufacturing cost

Continuous Hydrophilic Coatings or Membranes

  • Made of hydrophilic material such as polyurethane (PU)
  • Move vapor away by molecular wicking
  • Non-porous and less breathable than microporous membranes
  • Relatively low manufacturing cost

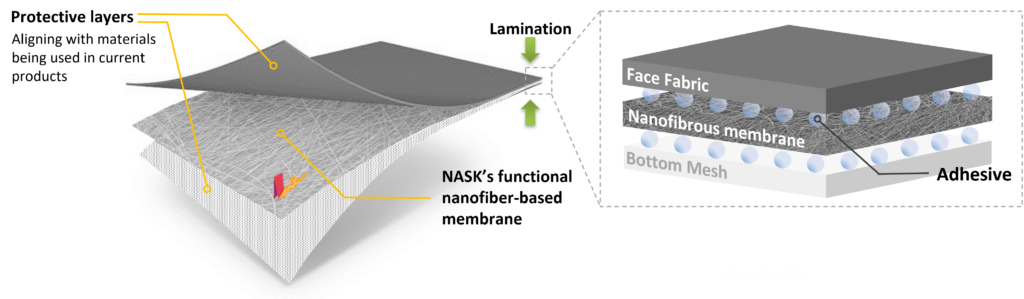

Structure of

NASK’s Nanofibrous Fabric

Distinctive Properties of

NASK’s Nanofibers

Features
  • Superb breathability
  • Waterproof (Waterproofness of NASK’s Nanofibrous Fabric Can Be Customized)
  • Wettability of NASK’s Nanofibrous Fabric Can Be Customized
  • Versatility of nanofibers allows the realization of multi-functional fabric materials
  • NASK’s Nanofibrous Fabric Can Be Laminated with Conventional Protective Layers
Additional Optional Features
  • Phase 1: Antibacterial
  • Phase 2: Anti-odor
  • Phase 3: Far Infrared Emission
  • Phase 4: Self cooling
  • Possibility to embed different chemical ingredients (i.e. PCM) in nanofiber level
Distinctive Properties

Five features

Feature Advantage
Small pore size Effectively block water droplets while allowing water vapor molecules to pass throughh
Hydrophobic material Effectively repel water droplet and prevent water penetration
High porosity Allow water vapor molecules to pass through the membrane efficiently.
High specific surface area Allow extra functions such as killing bacteria on the spot
PFAS-free Environmental-friendly
Dual-Mode Breathability

Physical + Chemical transfer.

  • Physical mode
  • Water vapor molecules pass directly through nanofiber pores.
  • Chemical mode
  • Vapor transferred by physicochemical process across the fiber surface.

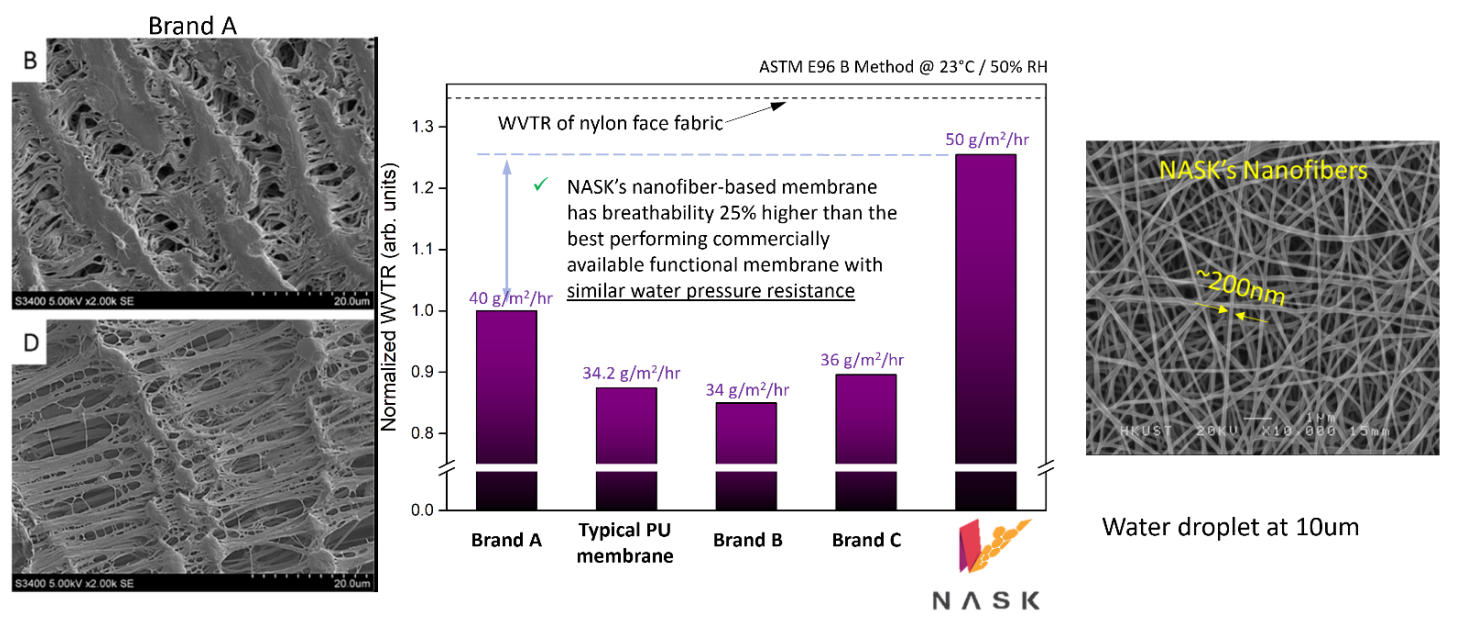

NASK vs Commercial Fabrics

25% more breathable
than the best in market.

Water Vapor Transmission Rate measured at equivalent water-pressure resistance. NASK's 200 nm nanofibers block a 10 µm water droplet while letting molecular-scale vapor pass through.

200nm

Nanofiber

10µm

Water droplet

VERSATILE APPLICATIONS

Functional apparels

Medical textiles

Cleanroom

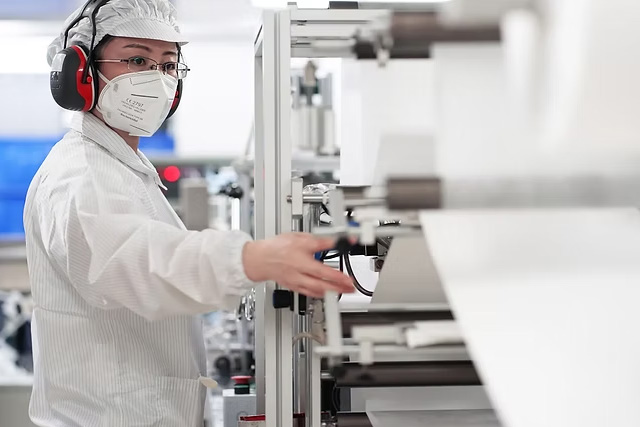

Manufacturing
